RIEVTECH PLC
Industry 4.0 PLC
ICON ENGINEERING is India based Channel partner of RIEVTECH Electronics Co., Ltd for PLC engineering, programming and commissioning.
Rievtech is a highly Innovative and growing Micro PLC maker company. It has wide variety of PLC from 6 I/O to 280 I/O with expansion modules, various interfaces through serial, ethernet, WiFi and GSM (2G/3G/4G)connectivity.
It supports all industry standard communication protocols for interface with instruments and equipment. It offers the remote operation from mobile handset.
Rievtech supports MQTT messaging protocol typically used to connect PLC to the Cloud database. No more need for intermediate Gateway devices!
Also, WiFi Ethernet is the fastest growing segment of industrial networking, allowing reliable access-from-anywhere capability and easy remote-data archiving. Now you can monitor parameter status, Alarm in real-time, receive email alerts and control processes remotely with WiFi/GSM remote PLC.
Using the Modbus TCP protocol (Client or server Mode) and MQTT, RIEVTECH Ethernet PLCs will easily integrates into existing networks and provide a simple, cost effective solution for your application and would allow customers to have ability to receive or send the data at any time, regardless of its location, provides ample opportunities and IoT solutions using cloud services.
Programming Software
The RIEVTECH PLC comes with the FREE of cost PLC Programming software.
The documentation for PLC programming of different models are also available FREE for you to start with the programming as per your project requirements.
RIEVTECH PLC Specification

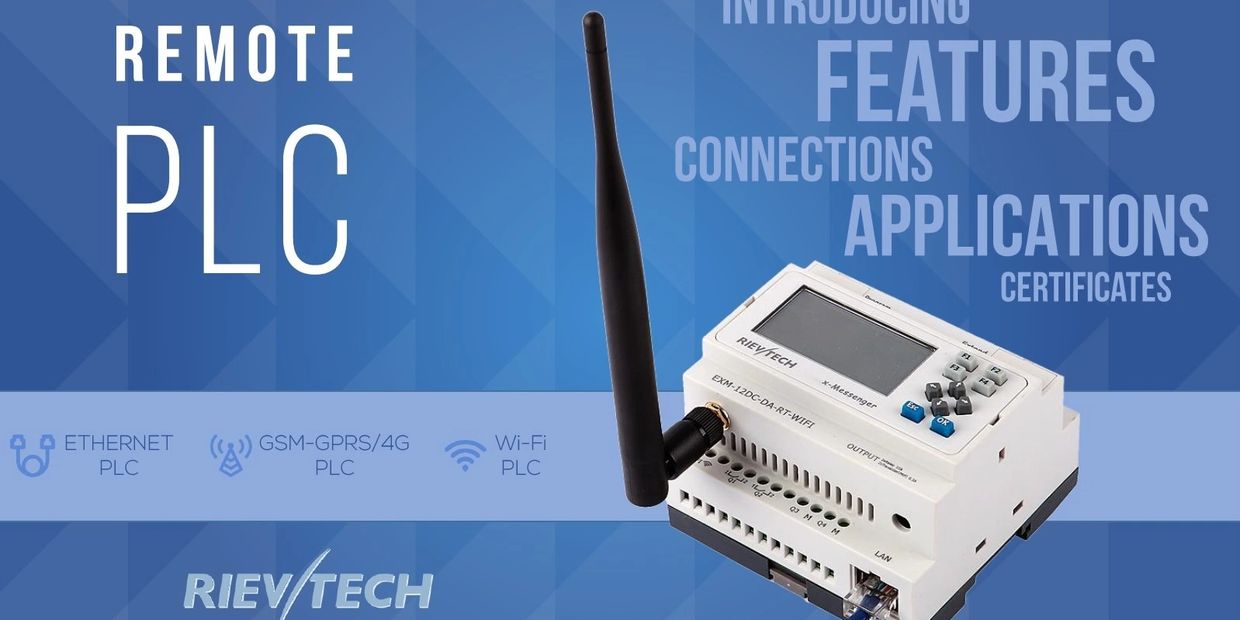

EXM-12DC-DA-RT-4GWIFI
EXM-12DC-DA-RT-4GWIFI
EXM-12DC-DA-RT-4GWIFI
- 8 Inputs and 4 Outputs in combination of analog and digital signals
- Supports MQTT protocol, data access to the IoT cloud service directly
- Non-Expandable
- Modify parameters via keypad LCD: yes
- Password protection: 4-digit number password protection or disable program upload function
- Communication interface: 1 RS232 port /TTL the extension port can be worked as RS485 port), 1 Ethernet port, WiFi and GSM interface as well.
- Communication protocol: Modbus RTU/ASCII, Modbus TCP
EXM-12DC-DA-RT-WIFI
EXM-12DC-DA-RT-4GWIFI
EXM-12DC-DA-RT-4GWIFI
- 8 Inputs and 4 Outputs in combination of analog and digital signals
- Non-Expandable
- Modify parameters via keypad LCD: yes
- Password protection : 4-digit number password protection or disable program upload function
- Supports MQTT protocol, data access to the IoT cloud service directly
- The extension port can be worked as RS485 port.
- Communication protocol : Modbus RTU/ASCII
PR-18DC-DAI-TN-N
EXM-12DC-DA-RT-4GWIFI
PR-18DC Starter Kit
- 12 input (Digital)
- 6 relay output -Relay output 10A(Max)
- Expansion port(up tp 16 modules)
- Supports MQTT protocol, data access to the IoT cloud service directly
- RS485 port -Can work both as a master and as a slave device.
- Ethernet port -Upload/download programs to the PLC, configure it, take advantage of the built-in web server, connect to other devices and more.
-The PLC can work as TCP server and TCP client at the same time, and also it can work as UDP server or UDP client as well.
PR-18DC Starter Kit
PR-18DC Starter Kit
PR-18DC Starter Kit
- PLC Model is PR-18DC-DA-R
- PLC Programming Cable
- 6 DI/AI(0...10V)+6DI
- 6 relay output -Relay output 10A(Max)
- No Ethernet Port
- Expansion capacity: 16 modules (PR-E-16)
- Password protection : 4-digit number password protection or disable program upload function
- Communication interface : 1 RS232 port & 1 RS485 port
- Communication protocol : Modbus RTU/ASCII
PR-12DC-DA-TN
PR-18DC Starter Kit
PR-12DC-DA-TN
- 4 DI/AI(0...10V)+4 DI
- 4 DO Transistor(0.3A) / 2 PWM Output
- Customizable Start-up page / screen 4-line, 16-character configurable backlight display
- Modify parameters via Keypad panel without downloading new program
- Various blocks & registers; different parameters can be displayed on one screen / page simultaneously
- Randomly specify a specific page to display the IO status of the CPU
- Alarm page can record and display the exact alarm occurrence time
- Programmable up to 64 (user defined) screens / pages
- Modbus RTU &ASCII protocol supported.
PR-6AC-R
PR-18DC Starter Kit
PR-12DC-DA-TN
- Power Supply AC 110V-240V
- 4 DI
- 2 relays(10A)
- Password protection : 4-digit number password protection or disable program upload function
- Communication interface : TTL interface , 1 Program/RS232 port
- Communication protocol : Modbus RTU/ASCII , only can serve as slaves
