RIEVTECH HMI PANEL

RTP1043

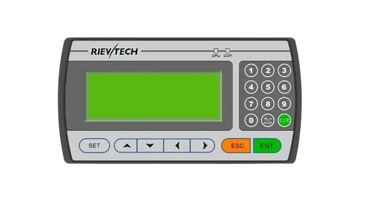

RTP1043  4.3” STN
ARM CORTEX-M3 high speed 32 bit RISC CPU
 Supporting offline simulation

RTP1043  Highlight:

  • 4.3” STN
  • ARM CORTEX-M3 high speed 32 bit RISC CPU
  •  Supporting offline simulation for easy and convenient testing
  • Supporting vector fonts and multi-language input
  • Supporting 8-level user password levels
  • Providing factory batch downloading tools
  •  MPI support. Directly connection with Siemens S7-300 without adapters

RTS010

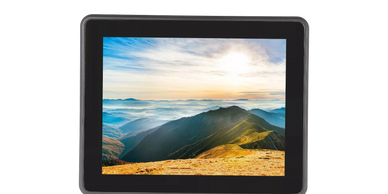

RTS010  9.7” 4:3 TFT LCD
Projected capacitive, multi-touch Glass+ Glass touch screen.

RTS010   Highlight:

  • 9.7” 4:3 TFT LCD
  • Projected capacitive, multi-touch Glass+ Glass touch screen.
  • Humanistic man-computer connection and easy-to-use configuration software.
  • Industrial isolation power supply, spray coating treatment and applicable to various harsh environment.
  • Photoelectricity isolation communication ports.

RTS6100M

RTS7070WE

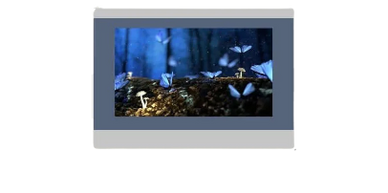

RST6100,  10.1” 16:9 TFT LCD Resistive touch screen
 high-quality and cost-effective touch screen

RTS6100M   Highlight:

  • 10.1” 16:9 TFT LCD
  • Resistive touch screen(Surface hardness 4H)
  • HMI 6000 Series, is high-quality and cost-effective touch screen with industrial ABS plastic shell, low cost, high reliability.
  • The mainboard is treated with a special coating (three anti-paint) to adapt to harsh environments.
  • The new model with better  look, and higher resolution model is available.

RTS7070WE

RTS7070WE

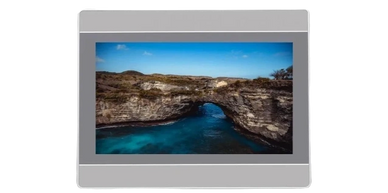

RTS7070WE 7” 16:9 TFT LCD touch screen
it is with quite high resolution for various applications

RTS7070WE Highlight:

  • 7” 16:9 TFT LCD touch screen
  • 4-wire industrial Touch Screen
  • RTS7000 series HMI is with high performance, industrial ABS economic frame, low cost, high reliability
  • It is standard HMI products by optimizing 1G, 4-core A7 processer
  • it is with quite high resolution and applicable for various industrial production application


RTS007

RTS007 , 7” 16:9 TFT LCD Full viewing angle
Multi-touch capacitive HMI
high brightness

RTS007 Highlight:

  • 7” 16:9 TFT LCD
  • Glass+Glass projective multi-touch capacitive HMI
  • high brightness, high contrast ratio, full viewing angle
  • Photoelectricity isolation communication ports
  • Industrial isolation power supply, spray coating treatment and applicable to various harsh environment

Request a Quote

RIEVTECH HMI Panel Specification

For more technical details , please refer the following documents

RTP1043 (pdf)

Download

RTS010 (pdf)

Download

RTS6100M (pdf)

Download

RTS7070WE (pdf)

Download

RTS007 (pdf)

Download
